Modular DC Powered Automation and Remote Control System
$29.95 – $341.55
Save water, power and money.
With our DC powered Latching Sprinkler Controller, Hub and AgriSwitch Power Socket Relay (Up to 15A), you can stop wasting expensive water and electricity. The beauty of our Modular Building Block system, is that it will quickly pay for itself as it only uses the precise amount of water that your lawn and plants need.
Within minutes you will be able to setup our DC Sprinkler Controller and/or Hub and AgriSwitch to control valves, pumps, lights, interact with sensors and much much more. On power up, the Controller and/or Hub becomes a WiFi hotspot, so you merely connect to it with your phone or computer’s web browser to configure them.
MADE IN USA!
Stop Wasting Electricity, and Save the Planet
Traditional controllers and valves haven't been updated in over a hundred years, and were designed at a time when fossil fuels were thought to be endless - when there were no concerns of atmospheric pollution. As such they are power hogs. When you factor in millions of these ancient devices wasting power around the world it translates into millions of gallons of oil and millions of tons of pollution pumped into our air.
Our DC latching system opens valves and relays using a 50 ms pulse of power to turn on or off, and as such their power is negligible. Latching valves consume 36,000 times less power than a traditional sprinkler, based on a 1 hour cycle.

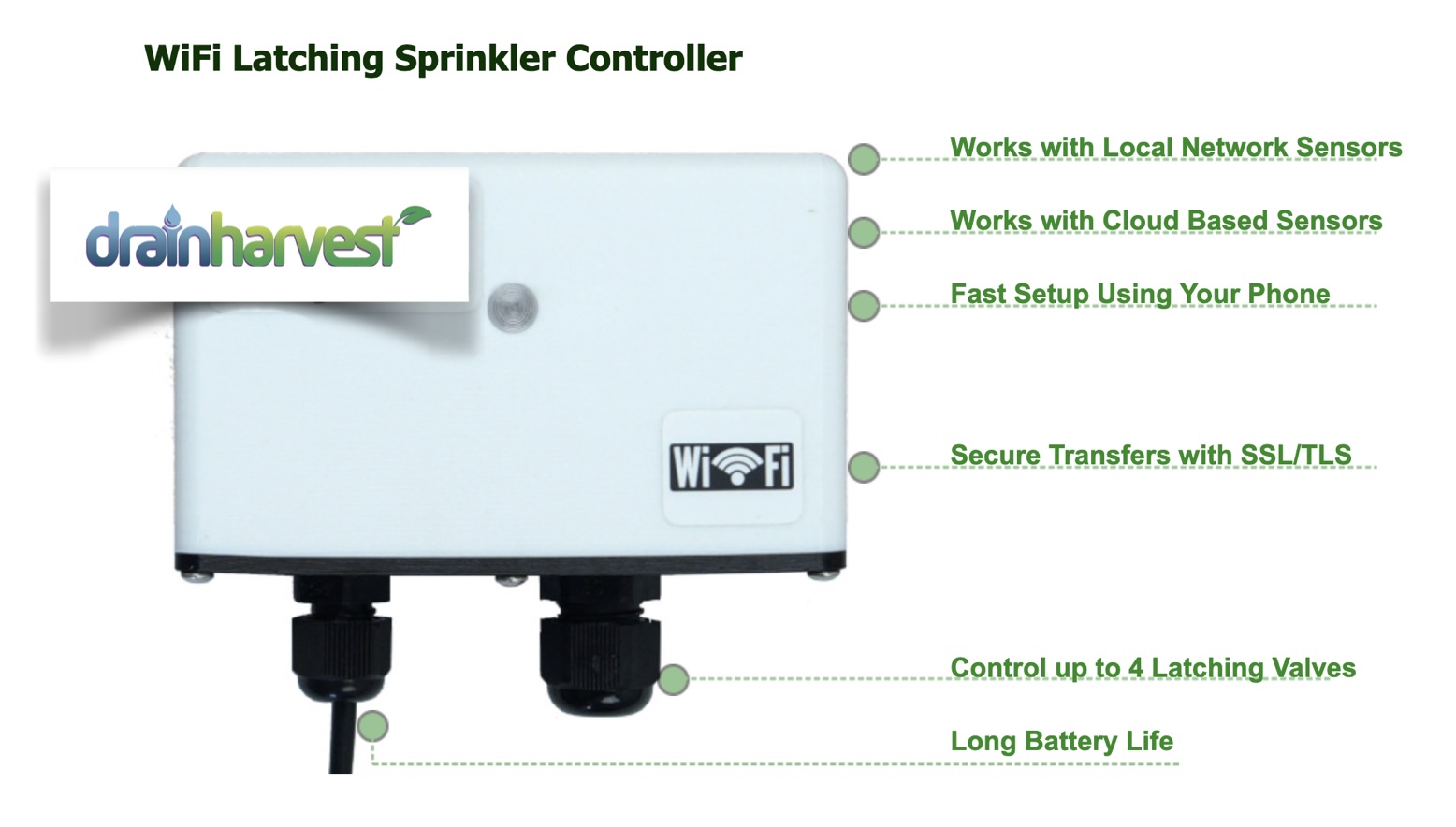

DrainHarvest WiFi Latching Sprinkler Controller - Features
- 9v Latching Valves are controlled by local network or cloud based sensors.
- Pays for it self, by saving water.
- Tracks the amount of water saved.
- Can be controlled or monitored from any web browser.
- Eliminates the need for long cable runs to sensors.
- Secure HTTPS connections using TLS1.3 Encryption.
- Works seamlessly with VegeCloud.com.
- Valve states are uploaded to the web after each run cycle.
- Fast and easy web based setup.
- Long battery life.
- Weather Proof enclosure.
- Easy to mount and compact.
- Add AgriSwitch to one of the 4 inputs, turn on any Line Powered device, such as pumps, lights etc.
DrainHarvest WiFi Latching Sprinkler Controller - Applications
- Crop Steering.
- Wireless irrigation and sprinkler systems.
- Greenhouse control.
- Aquaponics Systems.
- Water conservation.
- Greywater irrigation zoning.
- Turn on and off grow lights, control water pumps, greenhouse fans and other line powered devices up 10 10A with AgriSwitch.

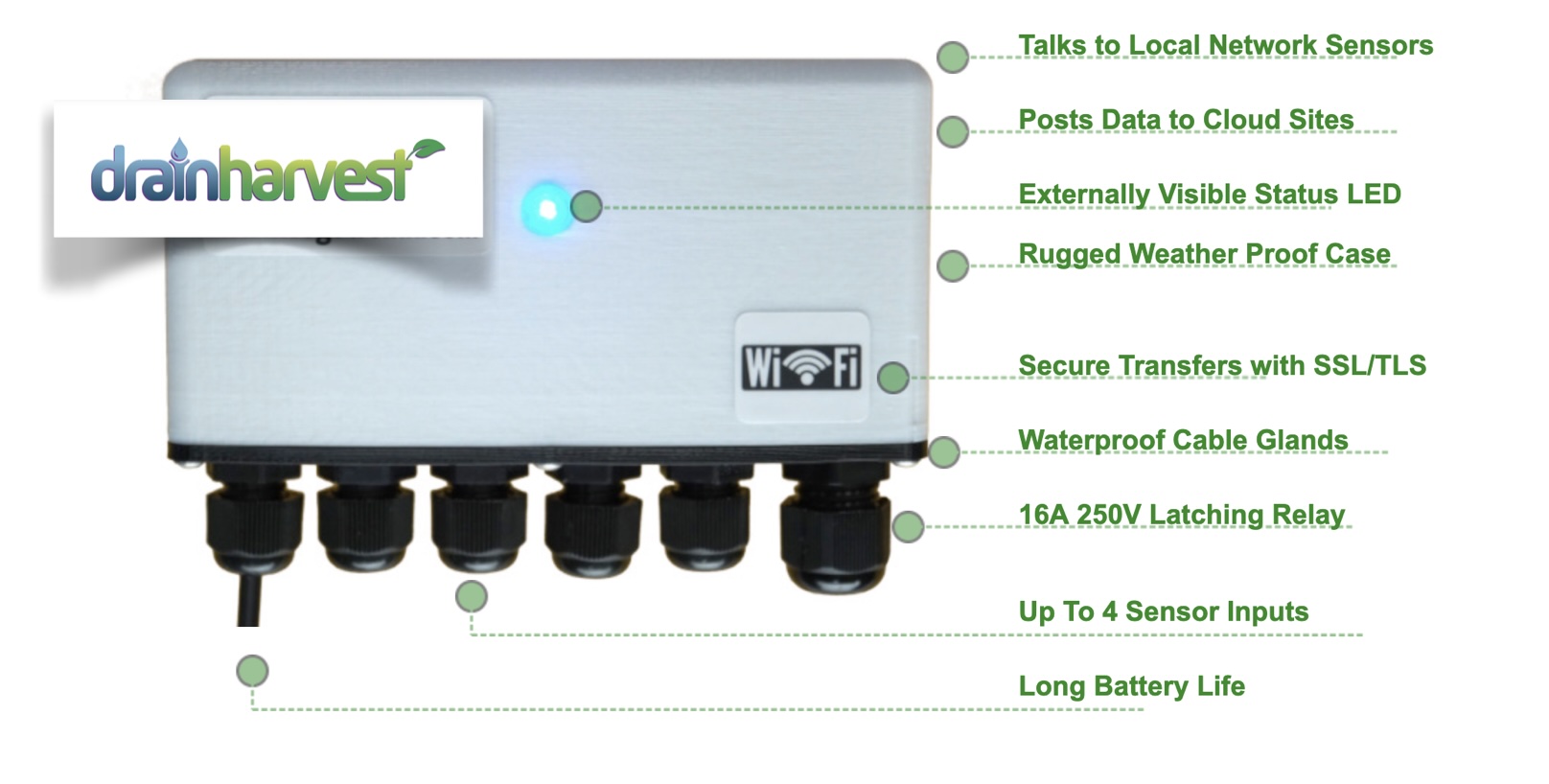

DrainHarvest WiFi Control Hub - Features
- Latching Pulse Output for AgriSwitch or Latching Sprinkler Valves.
- Relay is controlled by local or remote sensors
- Secure HTTPS connections using TLS1.2 Encryption.
- Will post to regular HTTP connections.
- Quickly display data on third party websites: VegeCloud.com, and ThingSpeak.
- Configurable URL allows it to post data to any website.
- Posts the device host name to networks scanners, for easy configuration.
- Can be access by it's "dot local" name on your local network.
- Can query and be queried by other hubs on your local network.
- Internal storage of 64 samples for each channel.
- Can store sample data to an optional SD Card.
- Long battery life with 20uA sleep current.
- Simple setup.
- Water tight enclosure.
- Settable hysteresis reduces relay chatter.
- Box has flanges and screw holes for easy mounting.
- Easy to mount and compact.
DrainHarvest WiFi Control Hub - Applications
- Control and monitoring of sprinkler systems.
- Control and monitoring of heaters.
- Control and monitoring of water tanks.
- Control and monitoring of lighting systems.
- Control and monitoring of trow lights.
- Garden and farm automation.
- Alarm systems.
- Crop Steering.

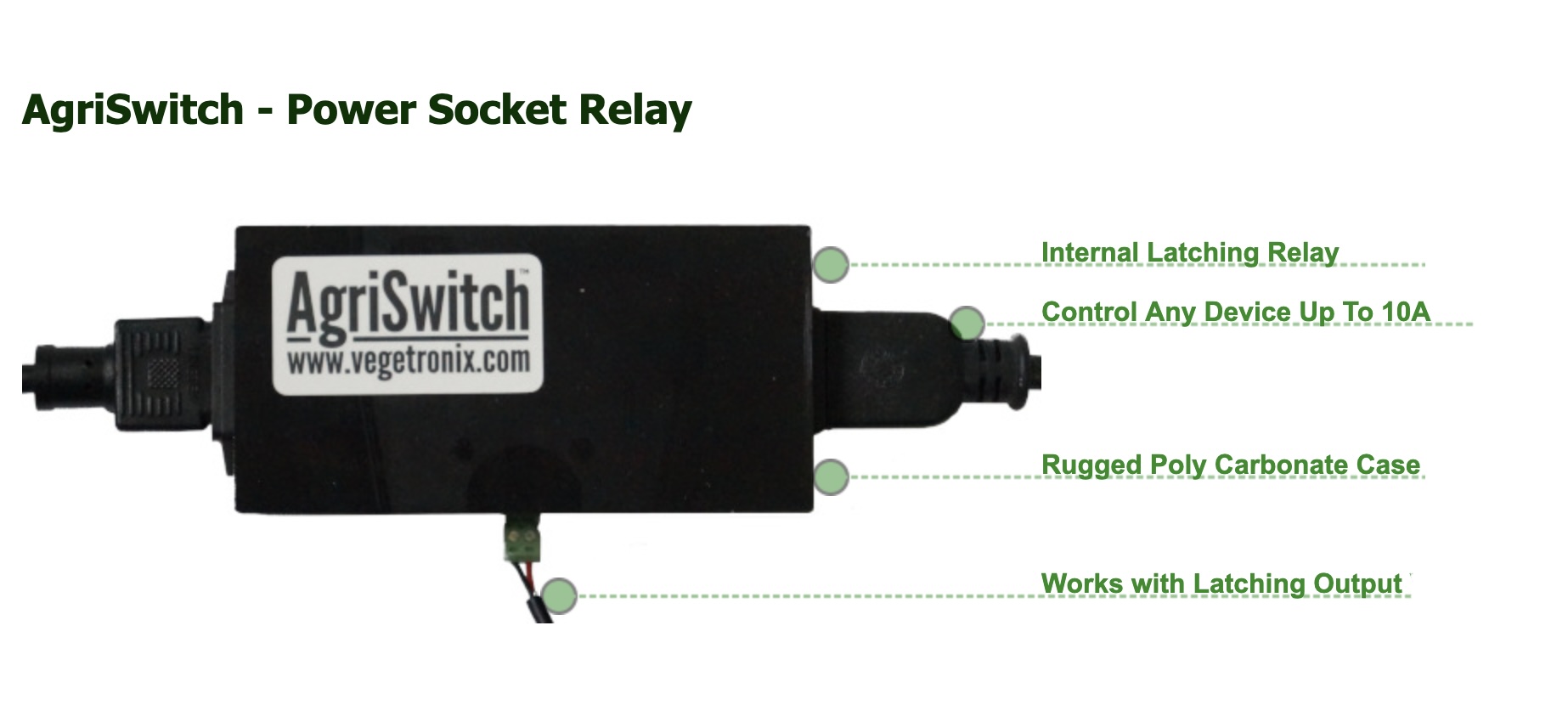

AgriSwitch Features
- Can power up to 10A devices
- Uses a low power latching relay
- Can be controlled from battery operated controllers
- Connects to DrainHarvest Hub controllers that have latching relay outputs
AgriSwitch Applications
- Turn on and off grow lights at dawn and dusk.
- Control water pumps.
- Control greenhouse fans.
- Greenhouse Automation.
- Crop Steering.
Additional information
| Choose Your Building Blocks | Wifi Sprinkler Controller, WiFi Hub, AgriSwitch, All Three |
|---|
