WaterQuick – Hot Water Recirc System Flow Monitor

Description

• 3/4″ fittings
• Minimum activation approximately 0.17 gpm (about the flow rate when a drip becomes a stream)
• Made of lead free brass
• Powered by the Pump Manager
• Backed by our 3 year warranty

Frequently Asked Question

Q: Can the Flow Monitor be used with other pumps?

A: No. The Flow Monitor was designed to only work with our systems.

Q: What is the minimum flow the Flow Monitor will detect?

A: The approximate flow rate that will activate the Flow Monitor is 0.17 GPM. That’s the flow rate when a drip becomes a stream of water.

Q: Can the Flow Monitor be used with any WaterQuick system?

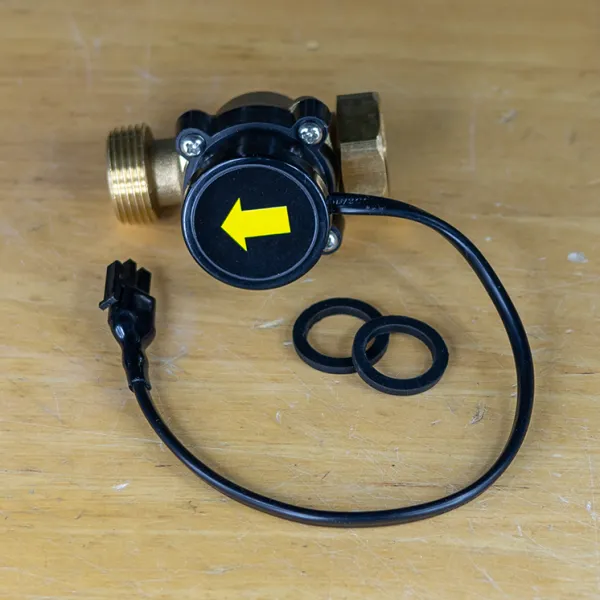

A: Yes. For use with the dedicated return systems the connector shown in the picture above is cut off and the outside sheathing stripped to reveal 2 wires. These wires can be stripped so that they will connect with our controllers.

Q: Can the direction of flow be changed?

A: Yes. There are 4 screws attaching the electronics to the body of the Flow Monitor. They can be removed and the entire electronics section can be rotated 180°

Q: Do the Flow Monitors require maintenance?

A: Maybe. In areas with high mineral content the Flow Monitor may need to be opened up and soaked in vinegar.

Q: Can the Flow Monitor be used in 1″ or larger pipes?

A: Yes. We have developed a simple Bypass system so that the Flow Monitor can be used in pipes up to 2 1/2″
