Description
APPLICATIONS

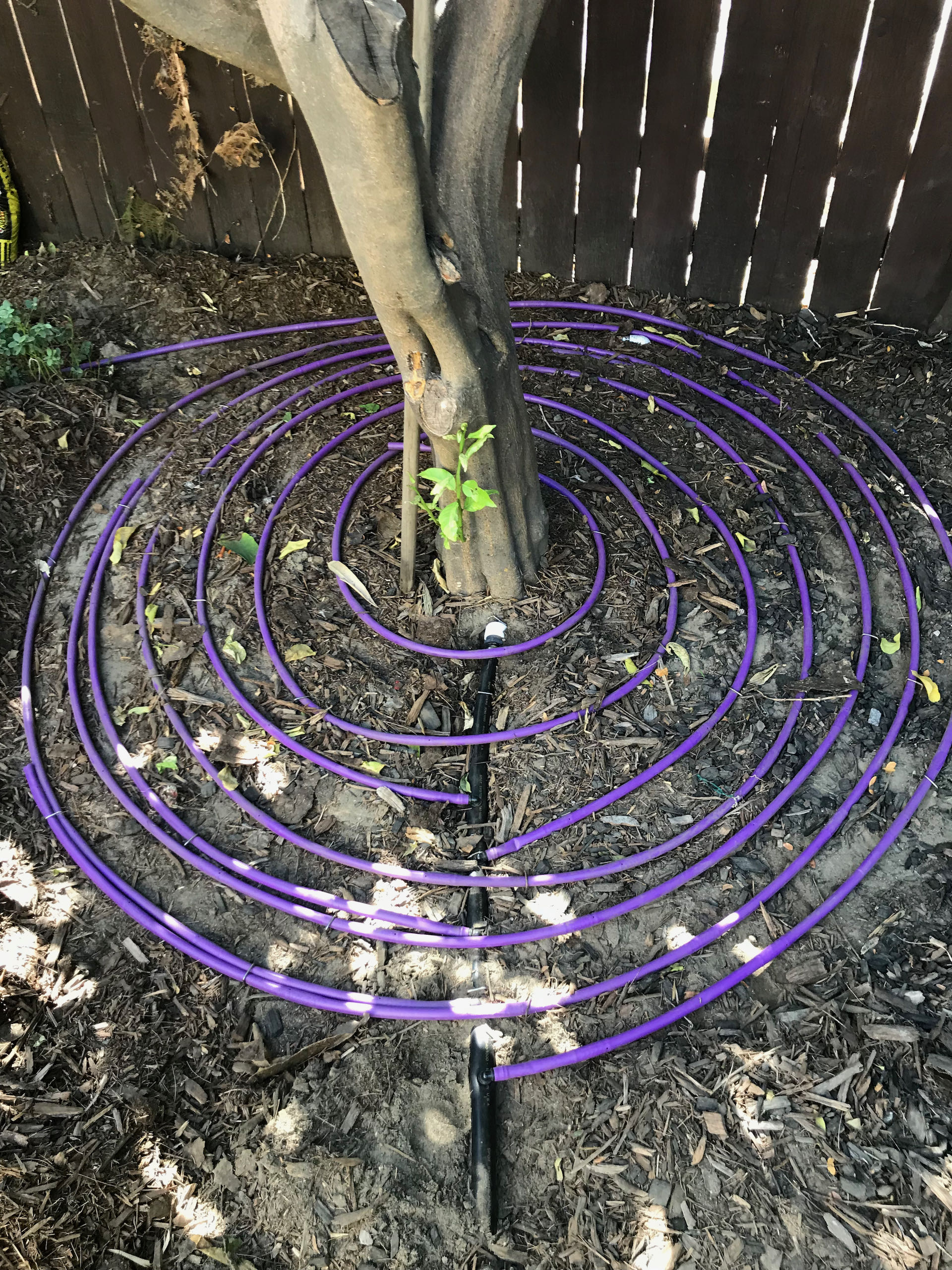

- Suitable for on-surface diversion systems from a domestic greywater diversion device (GWDD)
- Typically installed following a treatment process
- Can be used with domestic septic tank effluent (see SludgeHammer) with proper design, filtration and operation
- Reuse applications including municipally treated effluent designated for irrigation and other disinfected and non-disinfected water sources.
FEATURES AND BENEFITS
- Superior TurboNet flow regime

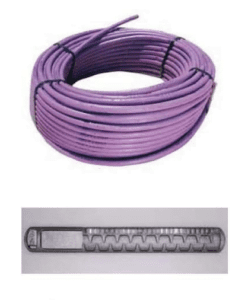

- Largest filtration area and cross section flow path on the market. Dripper is 2.165″ (5.5cm) in length increases clog resistance from source.
- Only dripper on the market with the ability to filter greywater quality water such as lint and hair
- The position of the filter to the dripper draws cleaner water from the center of the flow path, reducing the risk of clogging.
SPECIFICATIONS
- Dripper flow rates: 2 GPH (8 L/hr)
- Dripper spacing: 12” (0.30m)
- Pressure range: 1.45 to 43.51 psi (0.1 – 3.0 Bar)
- Tubing diameter: 0.51” (13.0mm) ID, 0.63” (16mm) OD

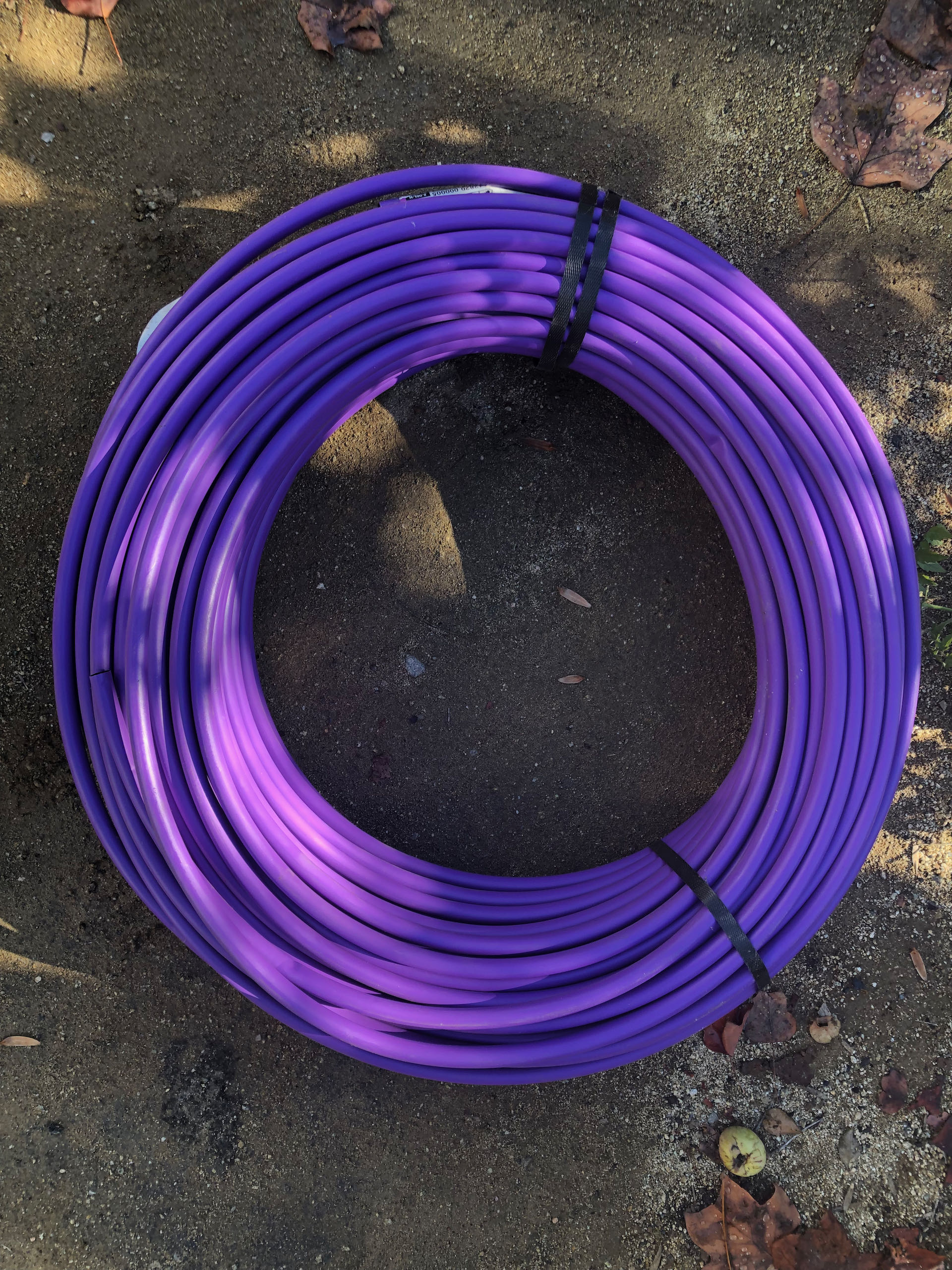

- Tubing color: Co-extruded lilac (Purple Pipe) indicating nonpotable
- Coil lengths: 328′
- Recommended filtration: 40 mesh or 400 micron
- Bending radius: 7”
- UV resistant
- Tubing material: Linear low-density polyethylene (LDPE)
