GreenSmart Rainwater – Wastewater Bypass, Diverter Control Solutions

Compliant Bypass/Diverters for builders and developers to comply with large residential, multiuse, and commercial installations for sustainable water reuse systems.

GreenSmart Actuated Bypass and Diverter Systems were specifically developed as a compliant solution for use in Alternate Non-Potable Water Source Applications, Indirect and Special Wastes, Rainwater, and other applications where controlled, directional, separational flow is required.

MADE IN ITALY, ASSEMBLED IN USA!

CONTACT FOR PRICING, APPLICATIONS AND MORE INFORMATION!

Category: Collect

Description

All GreenSmart diverters are third-party tested and compliant to IAMPO PS 59 | IAPMO IGC 352 | IAPMO Z 1059 and are further referenced as the industry standards for such valves.

GreenSmart Bypass and Diverters are equipped with Battery Backup Failsafe as standard equipment to limit overflow and flood exposure, along with logic boards and data output for BMS and BACnet control and communication.

GreenSmart Diverters are available in sizes ranging from 2” to 12”. CPVC valves for special chemical waste uses are available in sizes ranging from 2” to 4”. Recent applications involving the GreenSmart actuated diverters have been in the diversion and control of toxic waste, contaminated washdown water, aircraft fire suppression, and hospital medical hazardous waste control.

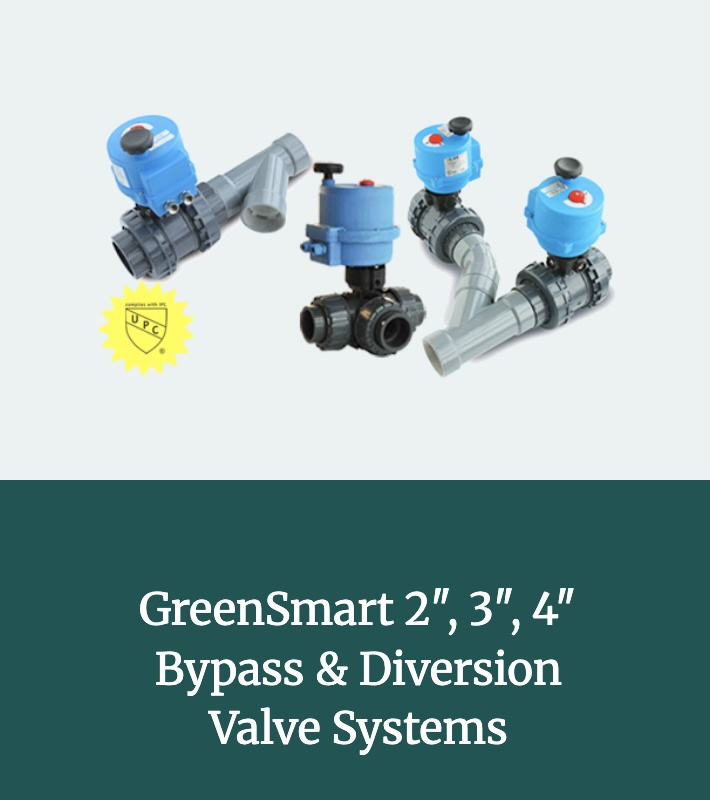

Greensmart 2″, 3″, 4″ Bypass & Diverter Valve Systems

GreenSmart has developed a range of graywater/wastewater diverters for builders and developers to comply with larger residential and commercial installations.

PRODUCT OVERVIEW

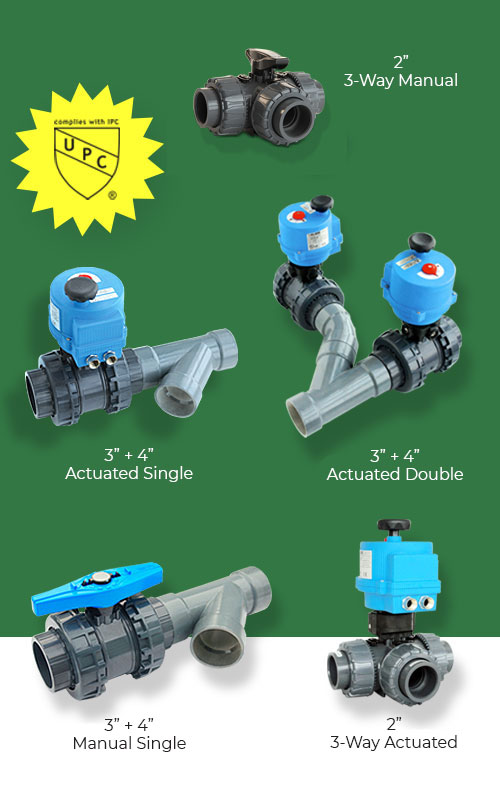

Greensmart 2”– 4” PVC/CPVC Bypass/Diverters are third party tested and compliant to IAPMO PS 59 | IAPMO Z 1059, the applicable industry standard for these specialized valves. UPC/IPC Listed and compliant for Alternate Non Potable Water Source uses, Rainwater, Greywater, Indirect & Special Wastes, and many other applications where automatic directional control, capture, separation, treatment, is required.

All actuated diverters are equipped with Battery Backup Failsafe as standard equipment to limit overflow and flood exposure, designed with logic boards and position outputs for BMS, BACnet, control and communication.

All Diverter Systems are special ordered to project specifications. Failsafe positions are preprogrammed at the factory per individual order.

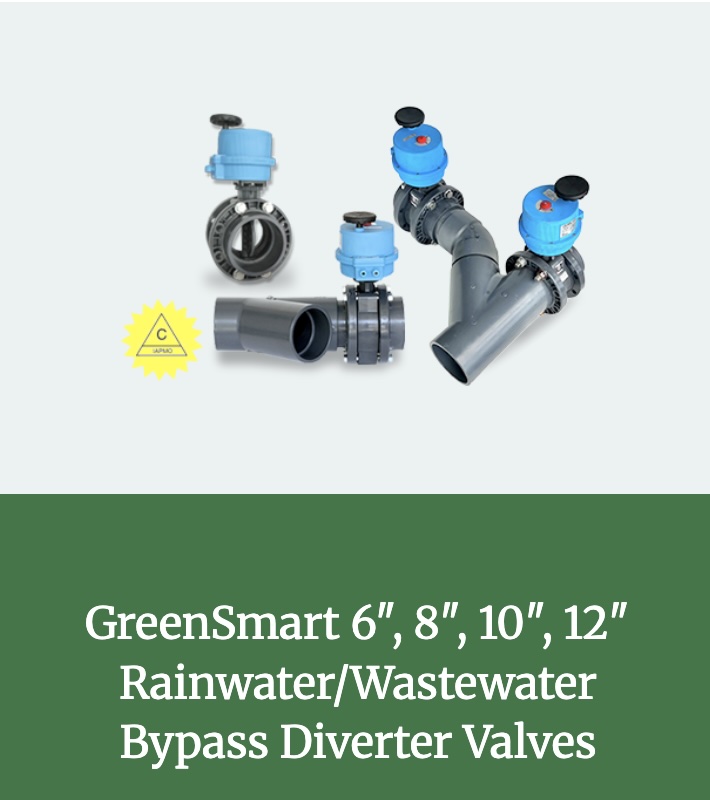

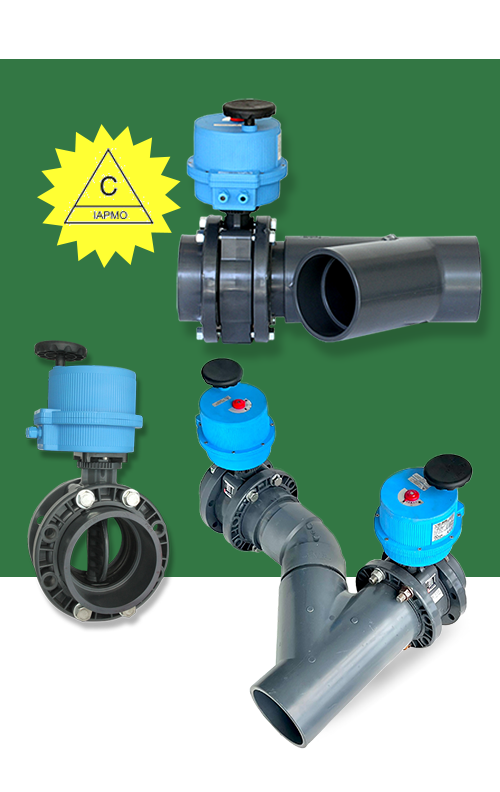

GreenSmart 6″ to 12″ Large Flow Rainwater/Wastewater Bypass Diverter Valves

Specifically designed for the collection and control of Alternate Nonpotable Water and Special Waste Water for separation, capture, treatment and reuse where large flow rates are required.

PRODUCT OVERVIEW

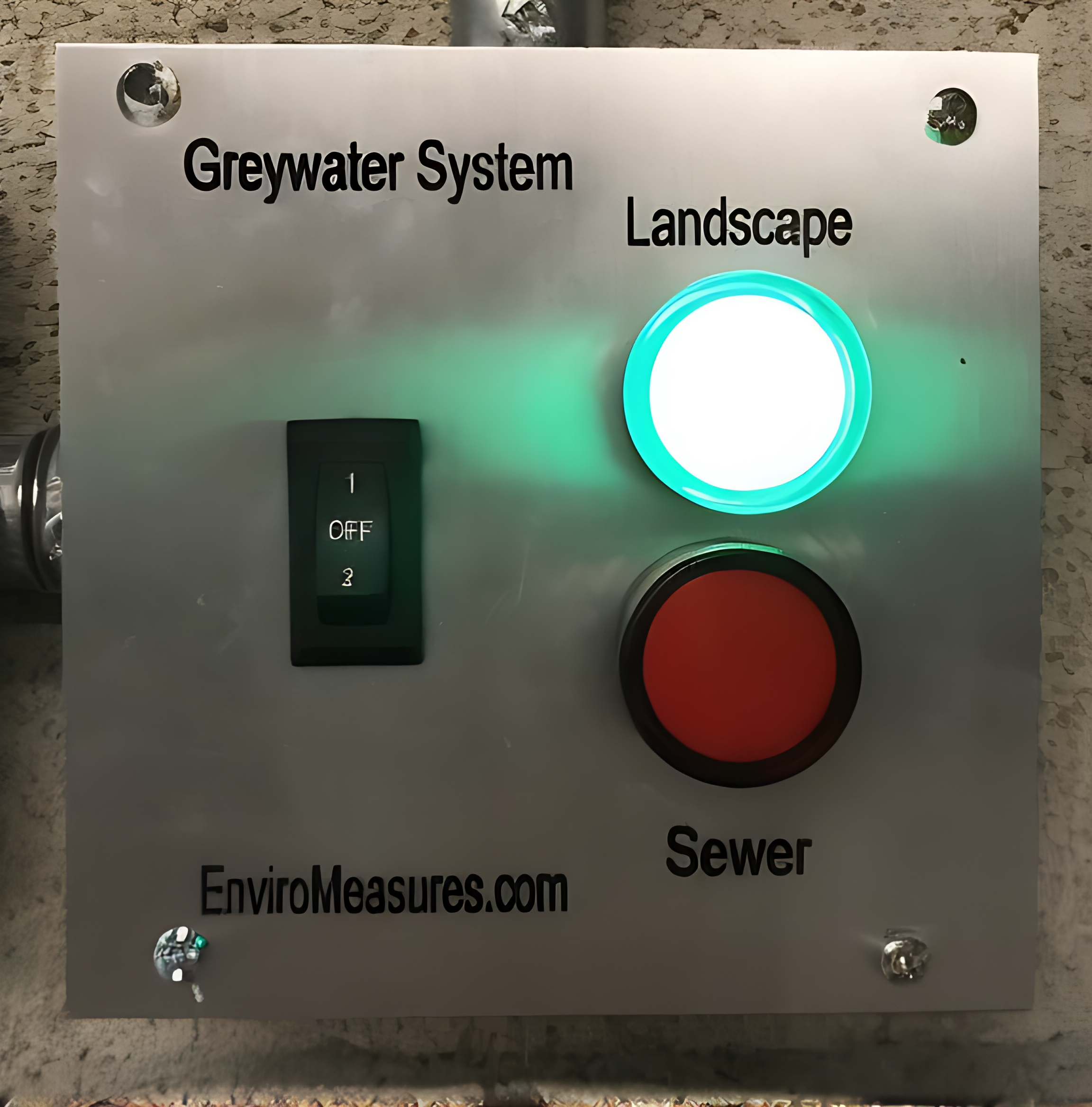

IAPMO tested and listed, IGC 352-18a | Z 1059. All valves are electric actuated, UL Approved low voltage 24vdc. Valves come with Fail-Safe rechargeable battery back-up as standard and can be wired to work with float switches, alarms, automatic diversion, control panels, LED’s, smart apps. Etc.

A debris-filtering device installed upstream from the valve maybe required. Check with your local authority having jurisdiction.

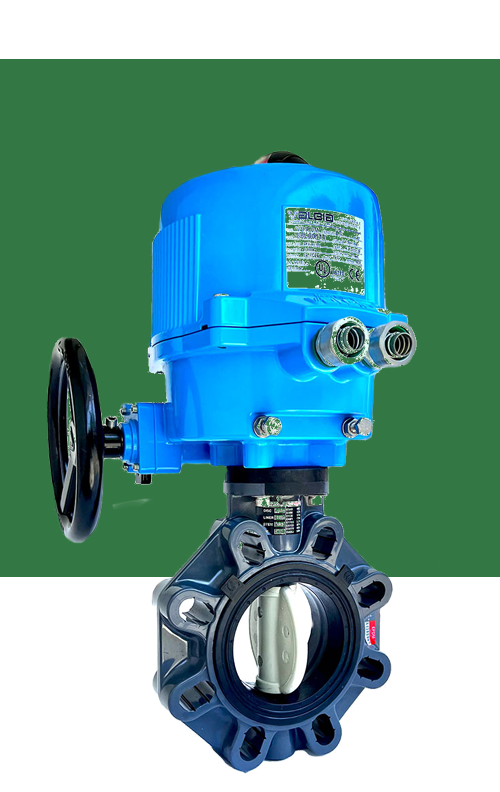

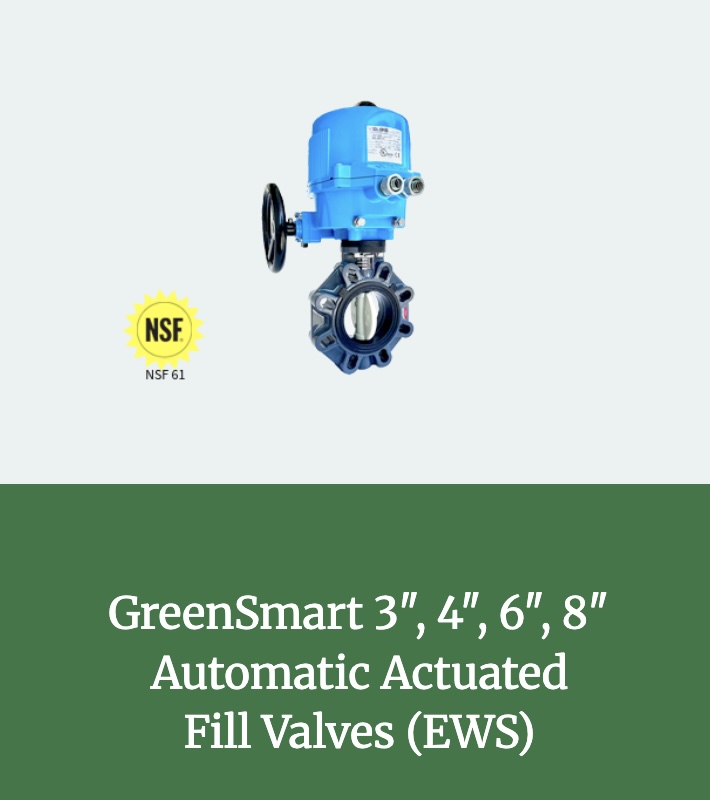

Emergency Water System (EWS) Automatic Fill Valve – 3″ – 8″

PRODUCT OVERVIEW

The GreenSmart EWS Automatic Fill Valve is part of our industrial-grade FX Series, engineered for high-intensity potable water and Emergency Water System (NPC-5) applications. Each EWS valve includes electric actuation, full BMS control panel compatibility, a manual geared override wheel, aluminum actuator housing, logic boards for readout signaling, and customizable valve-open positioning based on project requirements. All valves are special ordered, factory programmed, and fully tested to project specifications before shipment.

Available in 3″, 4″, 6″, and 8″ diameters, each valve is precision-built using corrosion-resistant, lead-free materials suitable for long-term potable water handling.
